O ePMP Force 180 é a segunda geração de módulos de rádio integrados ePMP. Ele tem a excepcional confiabilidade e qualidade que os usuários esperam da linha de produtos ePMP e adiciona alguns aprimoramentos de desempenho significativos.
Anexo: Catalogo PDF Force180
Cambium C050900C071A ePMP 5 GHz Force 180 Integrado Radio ROW
EPMP Force 5GHz 180 é a nova geração da EPMP 5GHz Rádio integrada oferecendo um maior ganho, antena integrada de 16 dBi .

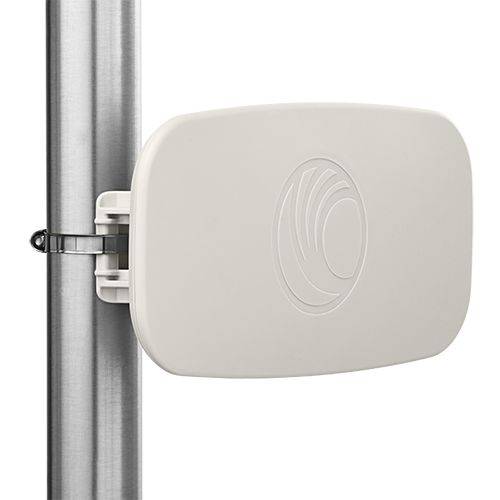

O suporte de montagem ajustável facilita a tarefa de instalação e alinhando o rádio adequadamente.
Pequeno e elegante Force 180 está equipada com porta Ethernet Giagabit para entregar a taxa de transferência máxima.
Especificações
Channel Spacing: Configurable on 5 MHz increments
Frequency Range: 5 GHz: 4910 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width: 5 | 10 | 20 | 40 MHz
INTERFACE
MAC (Media Access Control) Layer: Cambium Proprietary
Physical Layer: 2x2 MIMO/OFDM
Ethernet Interfaced: 10/100/1000BaseT, Compatible with Cambium PoE pinouts (V+ = 7 & 8, Return = 4 & 5) and Standard PoE pinouts (V+ = 4 & 5, Return = 7 & 8)
Protocols Used
IPv4, UDP, TCP, IP, ICMP, SNMPv2c, https, STP, SSH, IGMP Snooping
Network Management
https, SNMPv2c, SSH
VLAN
802.1Q with 802.1p priority
PERFORMANCE
ARQ: Yes
Nominal Receive Sensitivity (w/FEC) @200MHz
Channel
MCS0 = -93 dBm to MCS15 = -72 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz
Channel
MCS0 = -90 dBm to MCS15 = -69 dBm (per branch)
Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS15 (64QAM 5/6)
Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and
Station Priority
LINK BUDGET
Transmit Power Range
-17 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
Integrated Antenna Peak Gain: 16 dBi
Maximum Transmit Power: 30 dBm combined (subject to regional regulatory restrictions)
PHYSICAL
Antenna Connection: Integrated Antenna
Surge Suppression: 2 Joule Integrated
Environmental: IP55
Temperature: -30°C to +60°C (-22°F to +140°F)
Weight: 0.50 kg (1.1 lb.) (includes mounting bracket)
Wind Survival: 145 km/hour (90 mi/hour) with antenna
Dimensions (h x w x d)
12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) with mounting bracket attached
Pole Diameter Range
1 1.6 in (2.5 4.1 cm) with included clamp ; up to 2.25 in (5.7 cm) with larger clamp
Power Consumption: 10 W Maximum, 5 W Typical
Input Voltage: 10 to 30 V
